Twisted Inc. Race Inspired 4 Link Kit with Coilovers 1973-1987 Squarebody C10

Twisted Inc. Race Inspired 4 Link Kit with Coilovers 1973-1987 Squarebody C10

$2,199.99 USD
$2,199.99 USD
Sale Sold out
Shipping calculated at checkout.
Would you like to add Viking Coilovers
FRAME MOUNTS
Weld In C-Notch

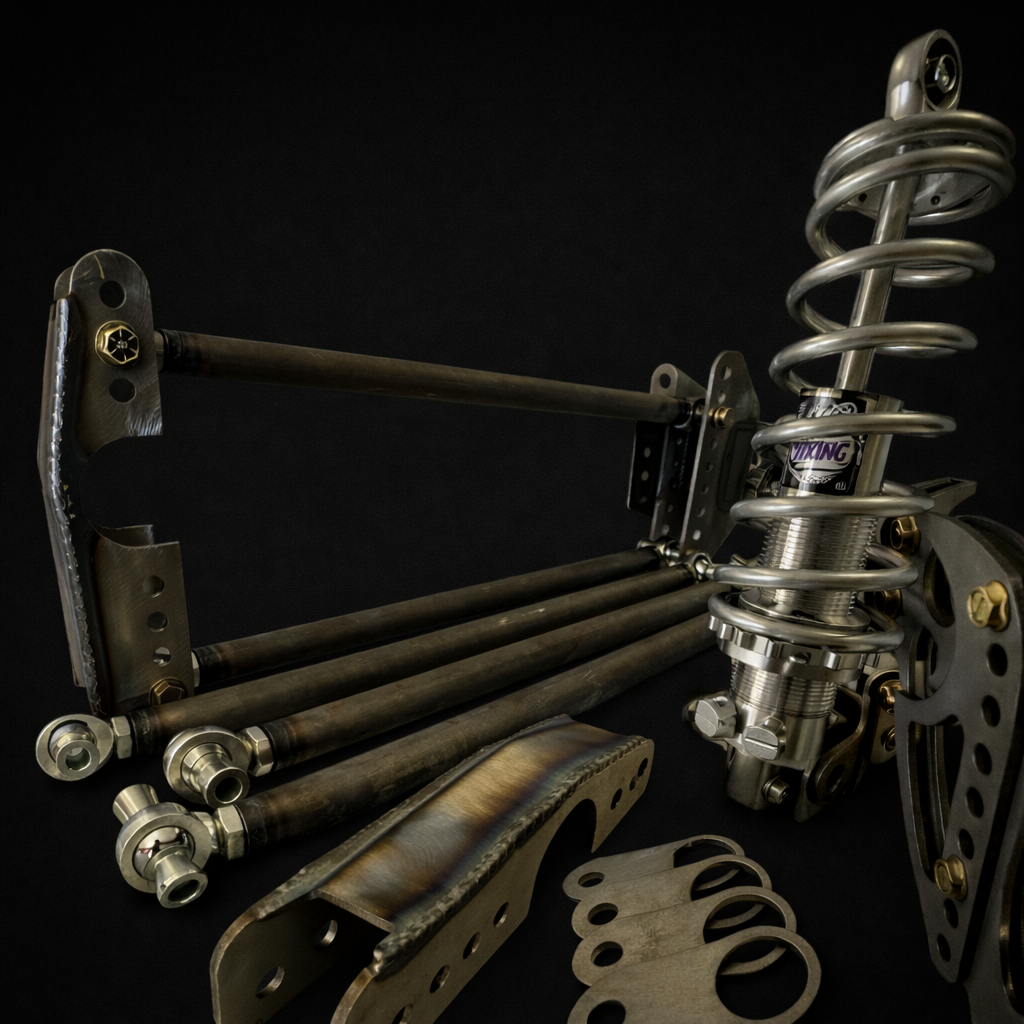

Twisted Inc. Race Inspired 4 Link kit

Designed with numerous adjustability options from mounting points, to Left and Right hand heims for easy adjustability and to achieve traction and weight transfer on high horsepower trucks. This kit is a complete weld on application. TIG welded 1.25" DOM link bars, mig welded .188 P&O frame and axle brackets. Our kits are year and model specific designed to fit up to your frame rails to ease installation and keep precision. All of our kits are made with nothing but quality materials and components made in the U.S.A. Kits are currently available for the following

GM TRUCKS

1973-1987 Squarebody C10

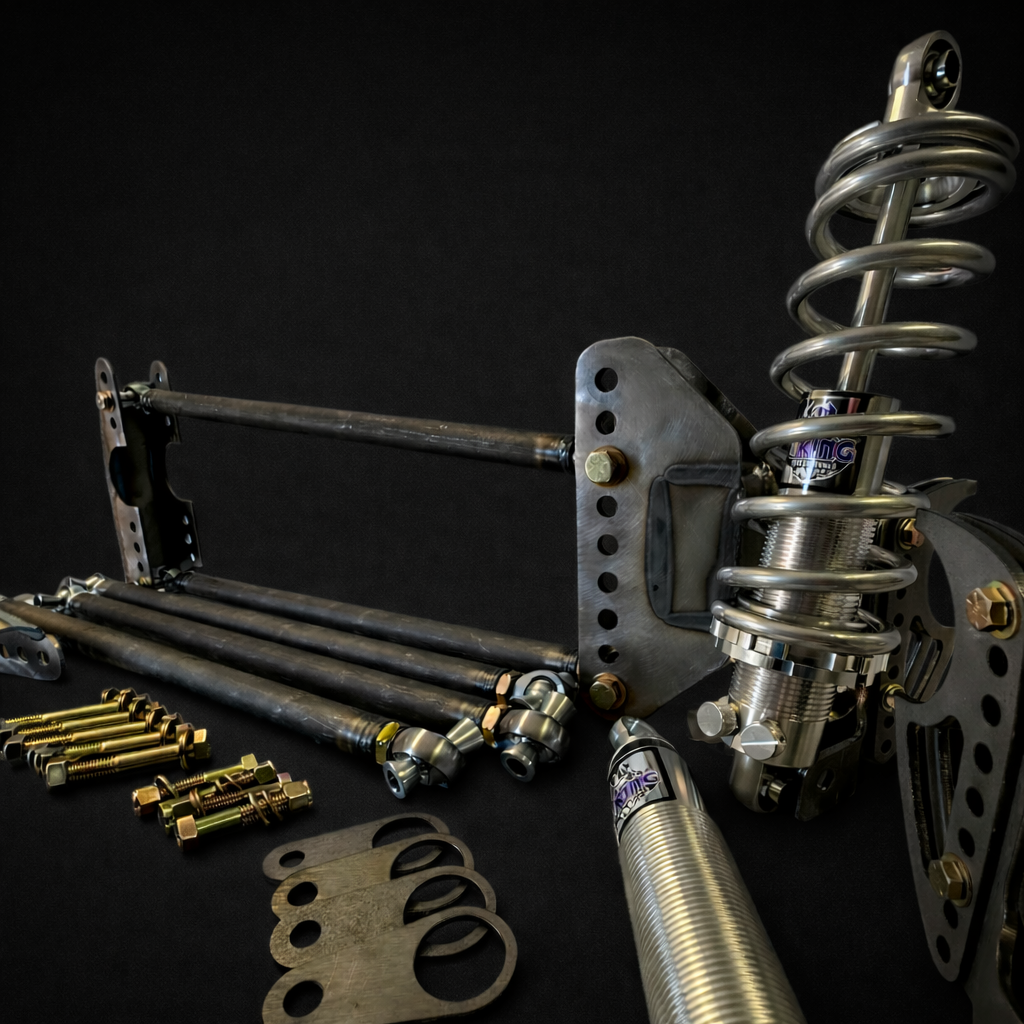

KIT INCLUDES



• 4 Adjustable parallel link bars 1 panhard bar all tig welded with left and right hand heims for easy adjustment.

• Mounting Brackets are made of 3/16 P&O Steel

• Grade 8 Hardware

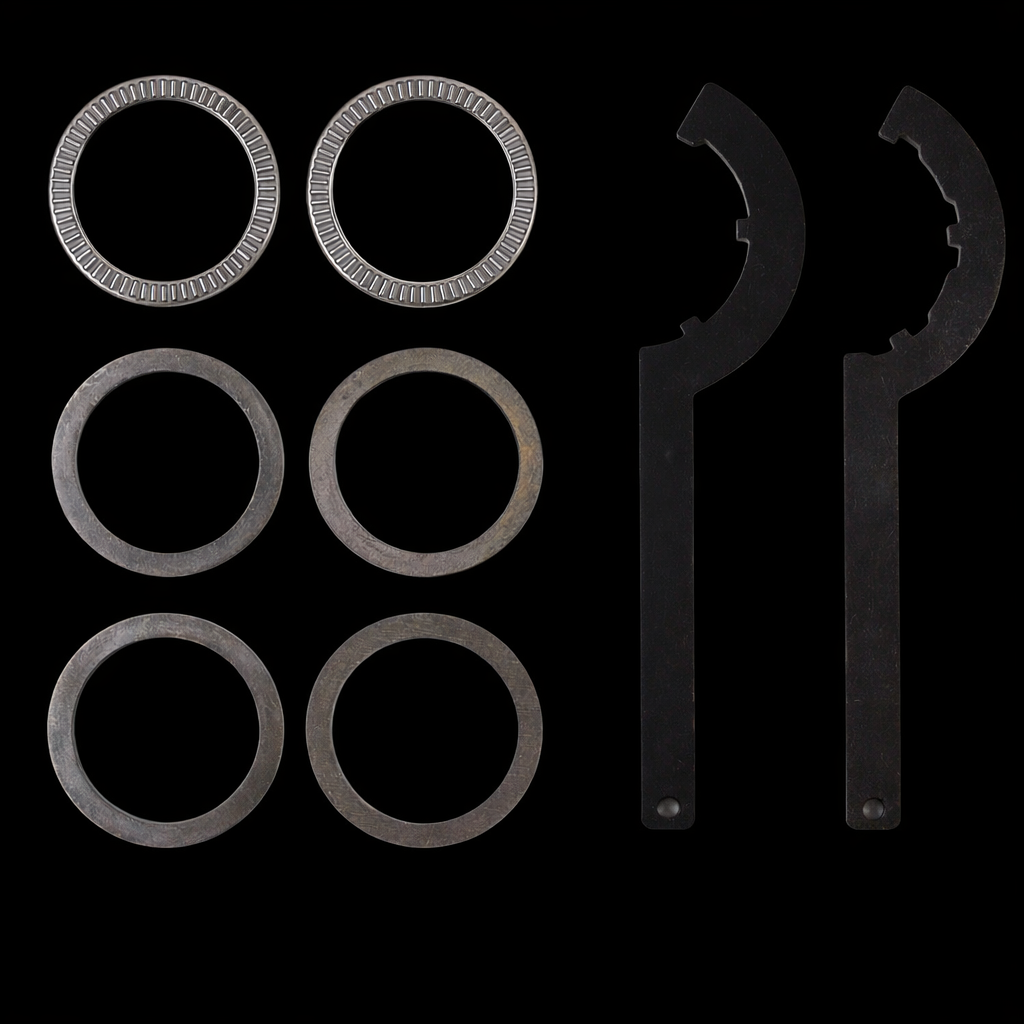

• 2 Dual Adjustable Viking Coilovers with thrust bearings and spanner wrenches Available with our standard Warrior valving (ideal for every day use and some racing)


Crusader valving options at an extra cost (ideal for drag racing applications with minimal street driving)

 FOR ALL CRUSADER OPTION PLEASE EMAIL OR CALL US TO ENSURE WE GET YOU THE PROPER VALVING FOR YOU VEHICLE



KIT DOES NOT INCLUDE ANTI ROLL BAR IF YOU WISH TO ADD ONE TO YOU KIT PLEASE CONTACT US VIA EMAIL OR PHONE

FOR OFF-ROAD & TRACK USE ONLY


Please allow 1-2 Weeks for delivery from date of purchase
